Vanquish H10 Optic Sparco Brushless RTR

SKU: VPS09018

Vanquish Products H10 Optic Sparco RTR Brushless

Ultimate Trail Buggy and Rock Racer with Hard Body and Brushless Power

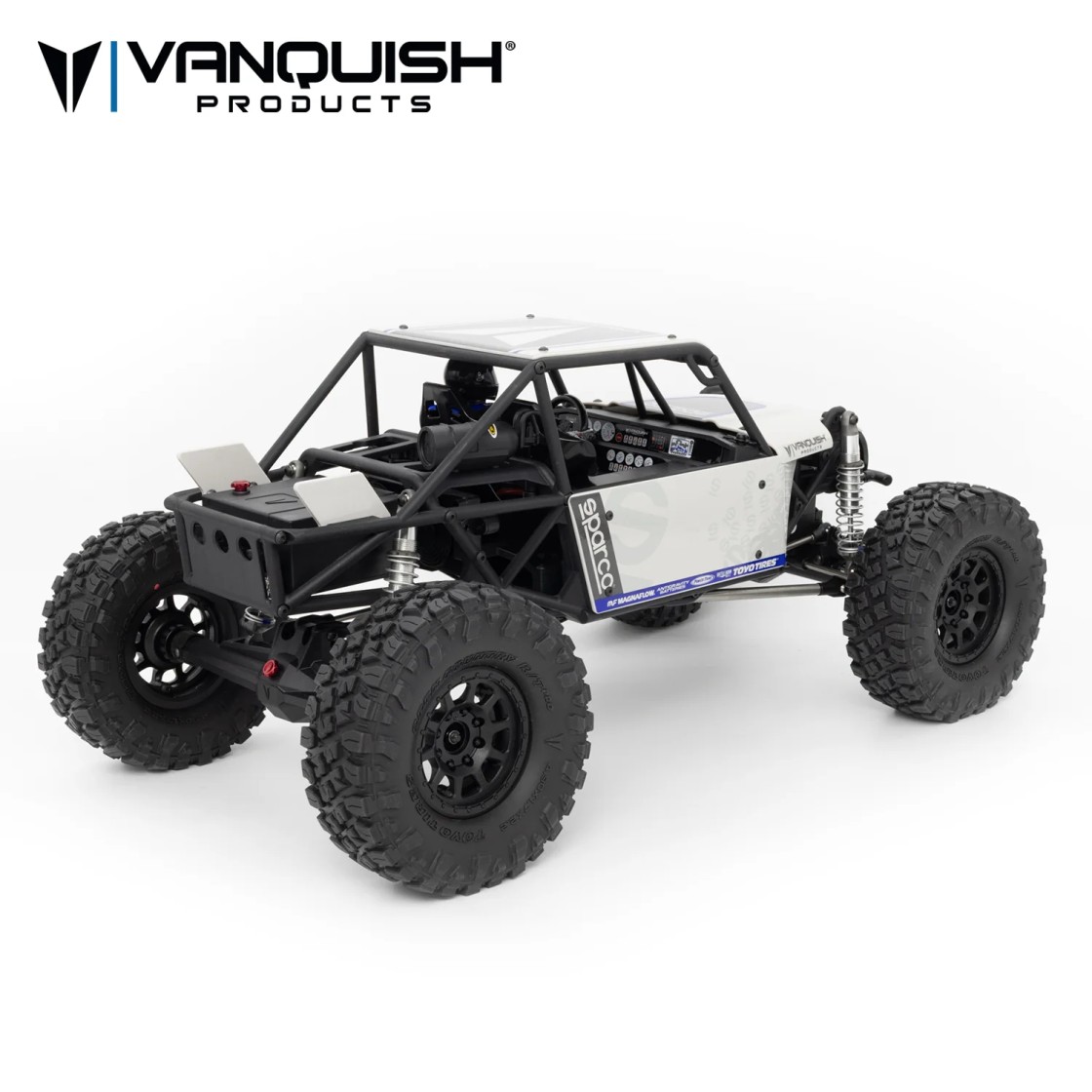

The Vanquish Products H10 Optic Sparco RTR Brushless was developed from the ground up as the ultimate trail truck and purpose-built rock racer. Its design is inspired by full-scale buggies engineered to conquer the most demanding trails. Thanks to the innovative caged chassis design, the massive tires remain fully visible at all times. A standout feature is the highly detailed Optic body made from injection-molded ABS plastic with rigid body panels, delivering exceptional realism and outstanding durability.

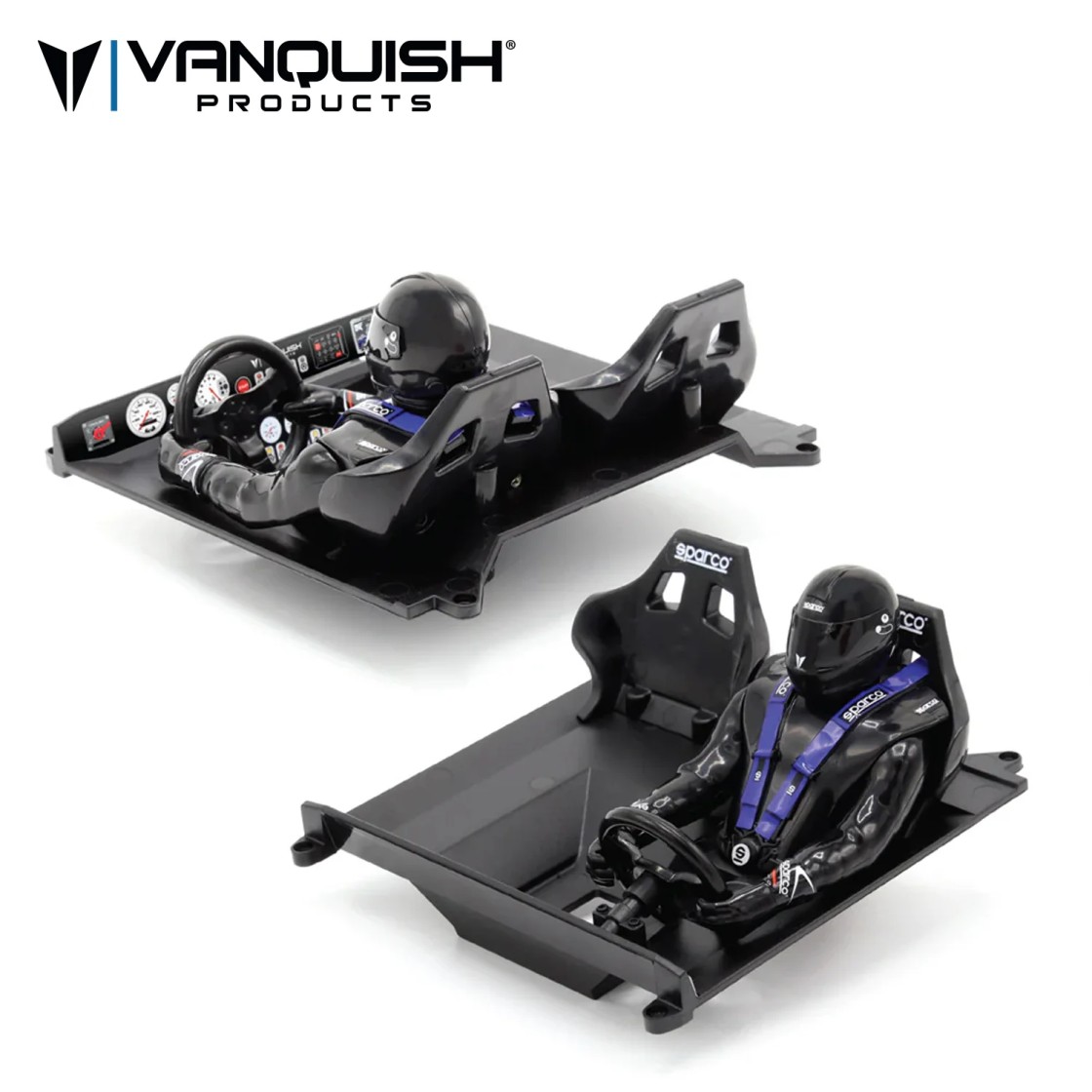

Beneath the body panels sits a highly detailed ABS interior complete with a 3D driver figure finished in an authentic Sparco appearance. The proven VFD transmission with its low motor placement provides balanced and predictable handling characteristics. Combined with the extended wheelbase and increased track width, this trail buggy delivers a completely new level of stability and off-road capability.

Features

• Ready-to-run 1/10 scale trail vehicle with molded ABS hard body interior and Optic body.

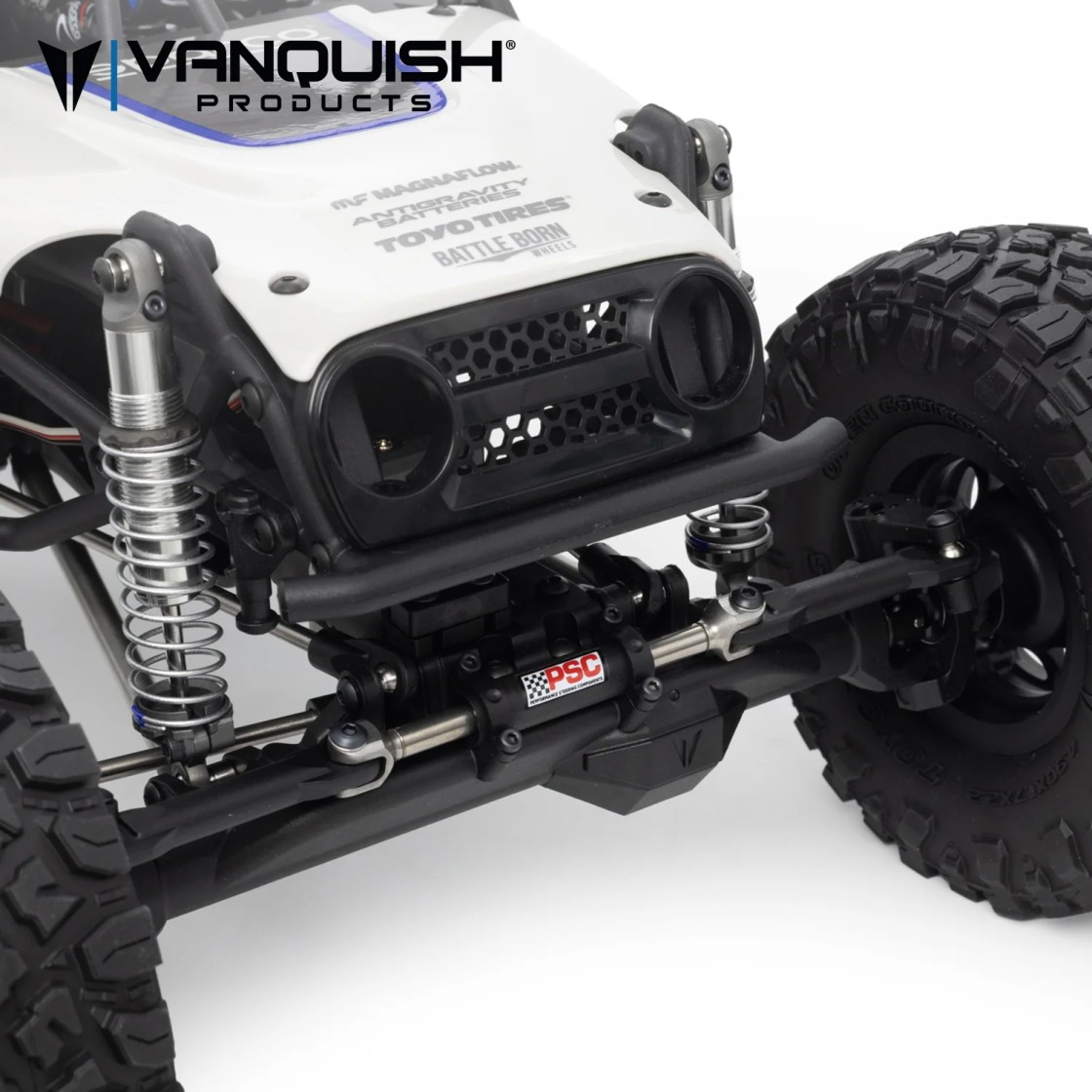

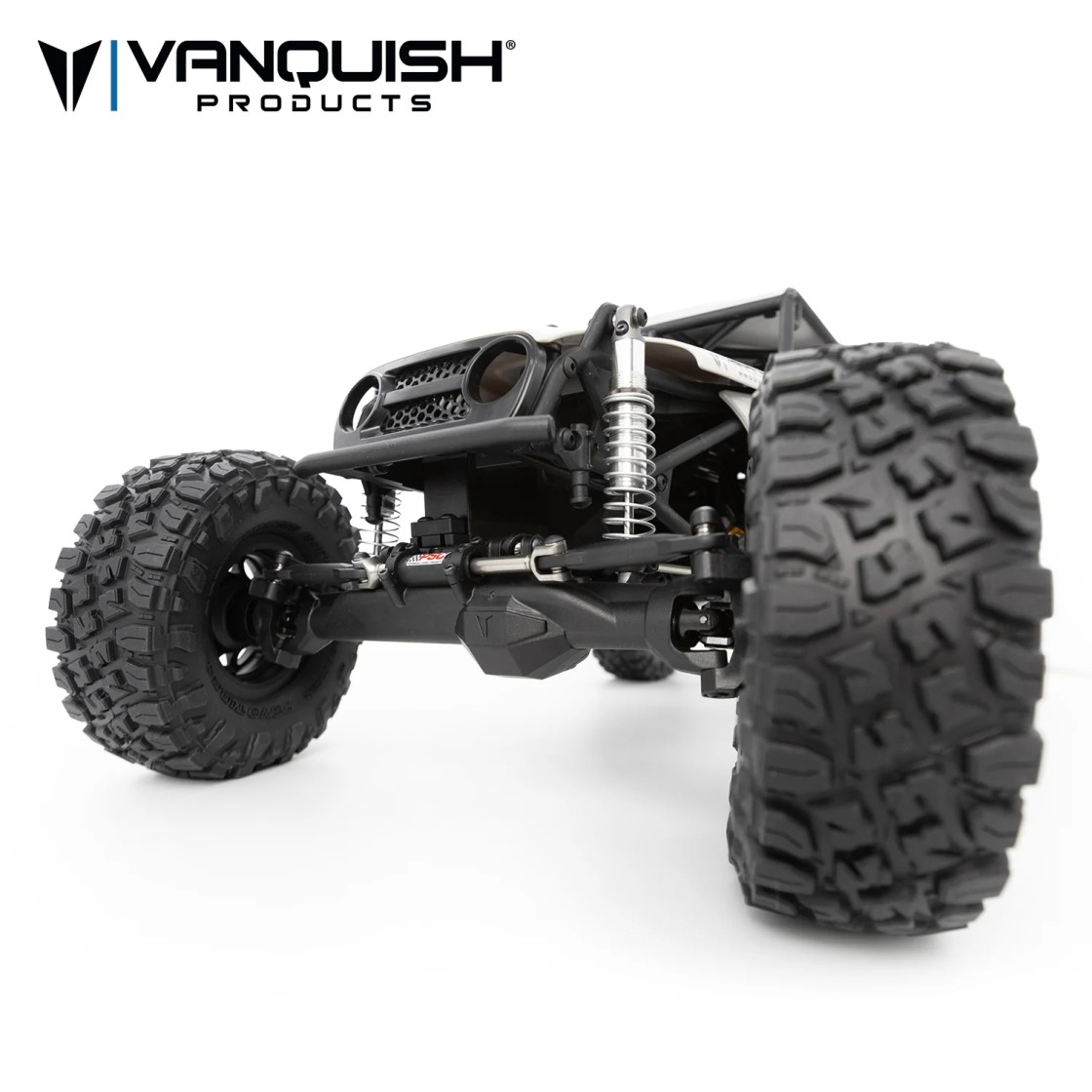

• H10 Hydro front axle with simulated hydraulic steering and integrated skid plate.
• Steering servo mounted behind the axle and isolated from the chassis on a 4-link suspension system.
• VDI universal front axle shafts provide up to 47 degrees of steering angle.
• H10 axles are 0.600 inches wider than F10 axles for increased stability.
• Durable drivetrain featuring machined 30/8T hypoid ring and pinion gears.
• Proven VFD transmission with 6% overdrive and transfer case equipped with metal gears and full ball bearings.
• Hobbywing Fusion SE 1800KV brushless 2-in-1 motor and ESC combo with FOC technology for precise low-speed control.
• Officially licensed Toyo Tires Open Country R/T Pro Red Compound tires measuring 4.9 x 2.2 inches.
• Detailed Sparco interior featuring EVO L QRT seats, Air Pro RF-5W helmet, Land+ gloves, racing suit, and harnesses.
• Convenient battery access through a side panel pin-and-latch system.
• VT-1 digital 4-channel transmitter with model memory and VS-1 metal gear steering servo delivering 200 oz-in of torque.

Technical Details

• Scale: 1/10
• Tires: Toyo Tires R/T Pro Red Compound 4.9 x 2.2 in
• Axle Ratio: 3.75:1
• Pinion Gear: 15T (32dp)
• Spur Gear: 56T (32dp)
• Overall Width Hex-to-Hex: 206 mm
• Wheelbase: 337 mm
• Overall Height: 200 mm
• Overall Front Ratio: 41.3:1
• Overall Rear Ratio: 44.0:1
• Final Overdrive: 6%
• Ready-to-Run Weight without Battery: 2.43 kg
• Battery Tray Dimensions: 93 mm x 36 mm x 42 mm

Operation & Maintenance Notes

Before the first run, check all critical screws and wheel nuts to ensure they are properly tightened. After driving in wet, dusty, or muddy conditions, the vehicle should be thoroughly cleaned and dried. Moving drivetrain components and bearings should be inspected regularly for smooth operation and maintained with suitable RC lubricants when necessary.

Important Notice

This ready-to-run vehicle includes the H10 chassis with installed electronics, motor and ESC combo, servos, and VT-1 transmitter. A 2S to 3S LiPo battery compatible with the battery compartment dimensions of 93 mm x 36 mm x 42 mm and a suitable charger are required for operation. Please note that both the battery and charger must use an XT60 connector. Transmitter batteries are sold separately.
