RC4WD C2X Class 2 Competition Truck w/ Mojave II 4 Door Body
The C2X features the classic styling of the 4 Door Mojave body mated with the Marlin style grille and machined delrin bed. Underneath, the chassis is 3mm thick CNC aluminum offering multiple mounting positions for the suspension links and rear shocks. Slide over obstacles with ease thanks to the machined delrin skid plate. The heart of the chassis is made up of our trusted R3 Single Speed Transmission with the Hammer Transfer Case.
Whether you’re driving for competition or just out trailing on the weekends, the C2X is sure to exceed your expectations.
Custom Designed For Looks And Performance
Twister High Torque Metal Gear Digital Servo
Chassis Mounted Steering Servo
540 Crawler Brushed Motor 35T
Rock Krawler RRD Emulsion Scale Dual Spring Shocks
Mickey Thompson 1.9″ Scale Tires
R3 Single Speed Transmission
CNC Machined And Bent Aluminum Chassis Frame
Center Mounted Realistic 4X4 Transfer Case
Outcry III Waterproof ESC
Scale Off-road Style Custom Delrin Bed
4 Link Rear And 3-Link W/ Panhard Bar Front Suspension
OEM Stamped Steel 1.9″ Beadlock Wheels
6-Cell 3000mAh NIMH Battery Pack
NIMH Peak Battery Charger
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio = 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
D44 Plastic Complete Rear Axle
Ratio: 38/13 = 2.92:1
Width at pin: 182.5mm
C2X Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops
Drive Shafts
High Quality Plastic Material, Ultra Durable High Quality Steel Yokes
Wheels
Name: OEM 1.9″ Stamped Steel Beadlock Wheels
Hub: 12mm Hex
Width: 24.3mm
OD: 48.3mm
Features: Stamped Steel, Aluminum Hubs, Internal Beadlock, Scale 6 Lug Design
Truck Dimensions
Wheelbase: 318mm (12.5″)
Length: 499mm( 19.6″)
Width: 239mm (9.4″)
Height: 236mm (9.3″)
Ground Clearance: 74mm (2.9″)
Final Drive Ratio: 34.9:1
Weight: 7.60Lbs/3.45Kg
The C2X RTR includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and the heavy duty .8 Mod Widened Gears for durability.
Drawing on the success of the RC4WD MOA Gear Sets, the C2X RTR Drivetrain has the most durable gears RC4WD has to offer so that it can stay on the trail, day after day with no issues.
The RC4WD D44 Plastic Complete Axles feature innovative 8 degree knuckles, adjustable caster, removable diff covers, hardened steel gears axles and CVD front axles. RC4WD also offers over/under ring and pinion gears for these.
The Driveshafts for the C2X RTR are designed with heavy duty metal uni-joints with tough plastic shafts for great driveline angles and resilience on the trails.
The C2X RTR includes a set of RC4WD RRD Emulsion Scale Dual Spring Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum, have a threaded pre-load collar and dual spring design. The Shocks do not come with oil in them. For best performance, RC4WD recommends rebuilding the shocks with your preferred shock oil.
The C2X RTR includes a set of OEM Stamped Steel 1.9″ Beadlock Wheels in a stealth black finish. These stamped steel wheels with CNC machined parts offer amazing scale realism.
Every C2X RTR needs a tough set of tires and the included Mickey Thompson 1.9″ Baja MTZ P3 4.6″ Scale Tires provide just that! These tires are known for handling rocks, mud, snow and whatever else you can throw at it with its durable advanced X2SS soft & sticky compound.
The Mojave II 4 Door Body comes with the RC4WD Mojave II Four Door Complete Interior w/Metal Details. Front and rear bench seats, full dashboard with gauges and metal accents highlight the best interior you will find on a RTR truck.
The C2X Class 2 Competition Truck w/ Mojave II 4 Door Body comes with a pre-glued full cab back painted to match the body. This finishes the amazing looks of the scale hard plastic body and adds another great detail to the entire truck.
The bed of the C2X is machined from 6mm delrin. This design allows for fine details in the surface, but also retains a very rigid structure for the rear of the chassis.
Featuring the incredible detail of the Officially Licensed Marlin style grille and headlights, the C2X looks great from any angle. All the lights are able to have LED lights installed with little to no modifications.
The C2X RTR is powered by the RC4WD 540 Crawler Brushed Motor 35T. With its sealed endbell for increased durability and long lasting performance, you’re sure to get where you’re going!
The C2X RTR features the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.
A great truck needs a great servo to get you out of those tough spots and the C2X RTR features the Twister High Torque Metal Gear Digital Servo. It boasts over 300oz/in of torque at 7.2V

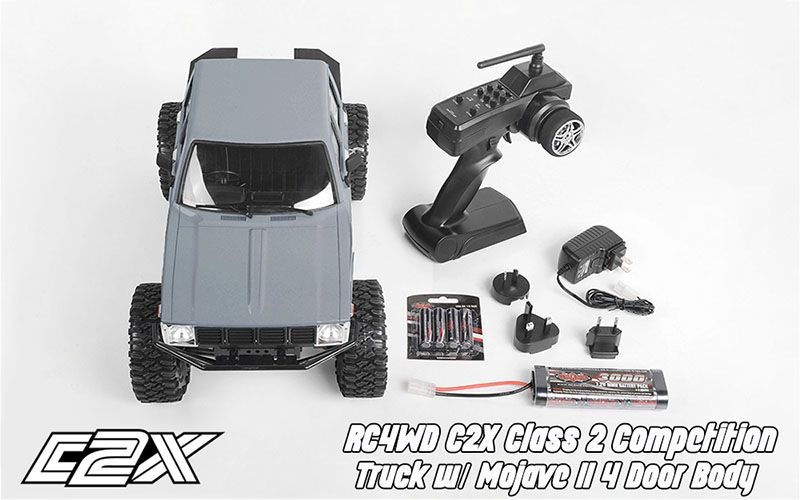

Its ALL in the box! Everything you need is provided to get you on the trails today!
- 1x RC4WD C2X Class 2 Competition Truck w/ Mojave II 4 Door Body
- RC4WD D44 Plastic Complete Front Axle (Z-A0104)
- RC4WD D44 Plastic Complete Rear Axle (Z-A0106)
- R3 Scale Single Speed Transmission (Z-U0028)
- Hammer Transfer Case (Z-U0024)
- RC4WD Marlin Crawler Front Plastic Tube Bumper for Trail Finder 2 (Z-S0594)
- XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
- 540 Crawler Brushed Motor 35T (Z-E0005)
- Outcry III Waterproof ESC (Z-E0113)
- Twister High Torque Metal Gear Digital Servo (Z-E0035)
- Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
- RC4WD M3/M4 Plastic Short Rod Ends (Z-S1378)
- RC4WD Plastic Punisher Shaft V2 (110mm – 115mm / 4.33″ – 4.52″) 5mm Hole (Z-S2143)
- RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
- RC4WD Universal NIMH Peak Battery Charger (Z-E0106)
- OEM Stamped Steel 1.9″ Beadlock Wheels (Black) (Z-W0210)
- RC4WD Mickey Thompson 1.9″ Baja MTZ P3 4.6″ Scale Tires (Z-T0123)
- Trail Finder 2 Plastic Body Posts (Z-B0029)
- RC4WD 1982 Toyota Pickup and Mojave II Clear Parts Tree (Z-B0078)
- RC4WD Mojave II Chrome Bumper and Parts Tree (Z-B0076)
- RC4WD 1982 Toyota Pickup and Mojave II Dash and Wiper Parts Tree (Z-B0080)
- RC4WD Marlin II Round Headlights and Marker Lights (Z-B0199)
- RC4WD 1982 Toyota Pickup and Mojave II Rubber Mirror (Z-B0082)
- Mojave II Decal Sheet (Z-B0111)
- RC4WD Mojave II Four Door Complete Interior w/Metal Details (Z-B0144)
- Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)
- Steel Button Head Cap Screws M3 x 8mm (10) (Z-S0652)
- Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
- Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
- Steel Button Head Cap Screws M3 x 15mm
- Steel Button Head Cap Screws M3 x 18mm (10) (Z-S0657)
- Steel Button Head Cap Screws M3 x 20mm (10) (Z-S0895)
- Steel Button Head Cap Screws M3 x 22mm (10) (Z-S0658)
- Steel Button Head Cap Screws M3 x 24mm
- Steel Button Head Cap Screws M3 x 26mm
- Steel Button Head Cap Screws M3 x 28mm
- 2mm Spacer
- Steel Flat Head Socket Cap Screw M3 x 6mm (10) (Z-S0648)
- Steel Flat Head Socket Cap Screw M3 x 8mm (10) (Z-S0649)
- Steel Flat Head Socket Cap Screws M3 x 10mm (10) (Z-S0860)
- Steel Flat Head Socket Cap Screw M3 x 12mm (10) (Z-S0896)
- M4 20mm long threaded shaft (set screws) (10) (Z-S0030)
- M3 Driveshaft Screw Pin (5) (Z-S0804)
- Regular M3 Black Nuts (20) (Z-S0872)
- Nylock Nuts M3 (Black) (Z-S0629)
- D44 Plastic Front Axle Replacement Parts (Z-A0119)
- RC4WD Complete Graphic Decal Set for 1982 Toyota Pickup/Mojave II (Z-B0140)
- RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
- RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
- 540 Crawler Brushed Motor 20T (Z-E0065)
- 540 Crawler Brushed Motor 27T (Z-E0067)
- 540 Crawler Brushed Motor 80T (Z-E0001)
- 540 Crawler Brushed Motor 65T (Z-E0002)
- RC4WD 1/10 Warn 8274 Winch (Z-E0075)
- RC4WD 1/10 Baja Designs Squadron Pro LED Lights (Z-E0066)
- RC4WD 1/10 Baja Designs S8 LED Light Bar (120mm) (Z-E0076)
- King Kong Tow Shackle (Z-S0093)
- Pintle hook & lunette ring (Z-S0233)
- Scale Diamond Plate Aluminum Sheets (2) (Z-S0533)
- Chubby 3 TON Scale Scissor Jack (Z-S1783)
- RC4WD Marlin Crawler Front Winch Bumper w/Stinger for Trail Finder 2 (Z-S1789)
- RC4WD Wired Winch Control Unit (Z-S1089)
- RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496)
- RC4WD XR3/XR4 2.4Ghz 4-Channel Receiver (Z-R0008)
- XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
- RC4WD Goodyear Wrangler Duratrac 1.9″ 4.75″ Scale Tires (Z-T0167)
- RC4WD Mickey Thompson 1.9″ Baja Claw TTC Scale Tires (Z-T0048)
- RC4WD Goodyear Wrangler® All-Terrain Adventure 1.9″ Tires (Z-T0170)
- RC4WD Goodyear Wrangler MT/R 1.9″ 4.7″ Scale Tires (Z-T0175)
- Classic 10-Hole Chrome 1.9″ Beadlock Wheels (Z-W0296)
- RC4WD Fuel Zephyr Beadlock Wheels 1.9″ (Z-W0294)
- 1/10 Military Storage Box (Z-X0049)
- Scale Garage Series 1/10 Dual Tank Welders Cart (Z-X0033)
- 52T 32P Delrin Spur Gear (Z-G0068)
- Heavy Duty Bevel Gear Set 43T/13T (Z-G0072)
- Tough Armor Tube Sliders for C2X Class 2 Competition Truck (Z-S1984)
- Basic LED Lighting System for C2X Competition Truck (Z-E0116)
- Suspension Link Set for RC4WD C2X Competition Truck (Z-S2036)
- Steering Guard for the C2X (Z-S2014)
- RC4WD BFGoodrich Mud-Terrain T/A KM2 1.9″ Scale Tires (Z-T0187)
- RC4WD BFGoodrich All-Terrain K02 1.9″ Scale Tires (Z-T0188)
- RC4WD BFGoodrich Krawler T/A KX 1.7″ Scale Tires (Z-T0189)
- RC4WD BFGoodrich Mud Terrain T/A KM2 1.55″ Scale Tires (Z-T0190)
- RC4WD BFGoodrich Mud Terrain T/A KM3 1.9″ Tires (Z-T0192)
- RC4WD BFGoodrich Mud Terrain T/A KM3 1.7″ Tires (Z-T0191)
- RC4WD Michelin Agilis C-Metric 1.9″ Tires (Z-T0193)
- RC4WD Michelin LTX A-T2 1.7″ Tires (Z-T0194)
- RC4WD Falken Wildpeak A/T Trail 1.9″ Scale Tires (Z-T0195)
- RC4WD Mickey Thompson Baja Pro X 4.19 1.7 Scale Tires (Z-T0196)
- Rocky Country 1.55″ Truck Tires (Z-T0022)
- Stamped Steel 1.7″ 10-Oval Hole Wheels (Plain) (Z-W0312)
- RC4WD Rogue 2.2 Beadlock Wheels (Z-W0316)
- Breaker 1.9″ Beadlock Wheels (Gold) (Z-W0325)
- 1.9″ 5 Lug Steel Wheels w/Beauty Ring (Silver) (Z-W0327)
- Tough Armor Double Tube Sliders for C2X (Z-S1995)
- Panhard / Upper Link Mount for D44 Axles (Z-S2018)
- TNK 2.2″ Beadlock Wheels w/ Brake Discs (4x) (VVV-C0987)
- TNK 2.2″ Beadlock Wheels (2x) (VVV-C0988)
- TNK 2.2″ Beadlock Wheels w/ Brake Discs (2x) (VVV-C0989)
- Seren 2.2″ Single Wheel (Black) (VVV-C1016)
- Burato 2.2″ Beadlock Wheels w/ Center Caps (Silver) (VVV-C1017)
- Burato 2.2″ Beadlock Wheels w/ Center Caps (Black) (VVV-C1019)
- C2X Chassis Set (Z-C0058)
- RC4WD Mickey Thompson Baja Pro X 4.75 1.9 Scale Tires (Z-T0197)
- Tough Armor High Clearance Winch Bumper (Z-S2050)
- Slot Mag 1.9″ Wheels (Z-W0331)
- Slot Mag 1.55″ Wheels (Z-W0332)
- Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
- OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (Black and Chrome) (Z-W0337)
- RC4WD Fuel Off-Road 1.55” Zephyr Beadlock Wheels (Gunmetal) (Z-W0333)
- Apio 1.55″ Single Beadlock Wheel (White) (VVV-C1164)
- Apio 1.55″ Beadlock Wheels (Black) (VVV-C1165)
- Rad 1.9″ Aluminum Internal Beadlock Wheels (Black) (VVV-C1225)
- Rad 1.9″ Aluminum Internal Beadlock Wheels (Silver) (VVV-C1227)
- Rad 1.9″ Aluminum Internal Beadlock Single Wheel (Black) (VVV-C1226)
- Rad 1.9″ Aluminum Internal Beadlock Single Wheel (Silver) (VVV-C1228)
- Stamped Steel 1.7″ Beadlock SR5 Wheels (Chrome) (Z-W0065)
- Stamped Steel 1.7″ Beadlock SR5 Wheels (White/Black) (Z-W0066)
- Roll Bar W/ Light Mount for RC4WD C2X (Z-S2110)
- Scale Steel Punisher Shaft V2 (100mm – 130mm / 3.94” – 5.12”) (Z-S1087)
- Scale Steel Punisher Shaft V2 (90mm – 115mm / 3.54” – 4.53”) (Z-S1118)
- RC4WD Center Line 1.9″ Warrior Deep Dish Wheels (Z-W0010)
- RC4WD Centerline 1.55″ Scorpion Deep Dish Wheels (Z-W0014)
- RC4WD Marlin Crawler Front Winch Bumper w/Stinger for Trail Finder 2 V2 (Z-S0852)
- RC4WD Universal Advanced LED Lighting System (Z-E0018)
- While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock when putting metal screws into metal parts.
- Steps marked with an asterisk (*) require thread lock.
- Use thread lock sparingly.
- Do not over tighten screws, otherwise you may strip the thread.
